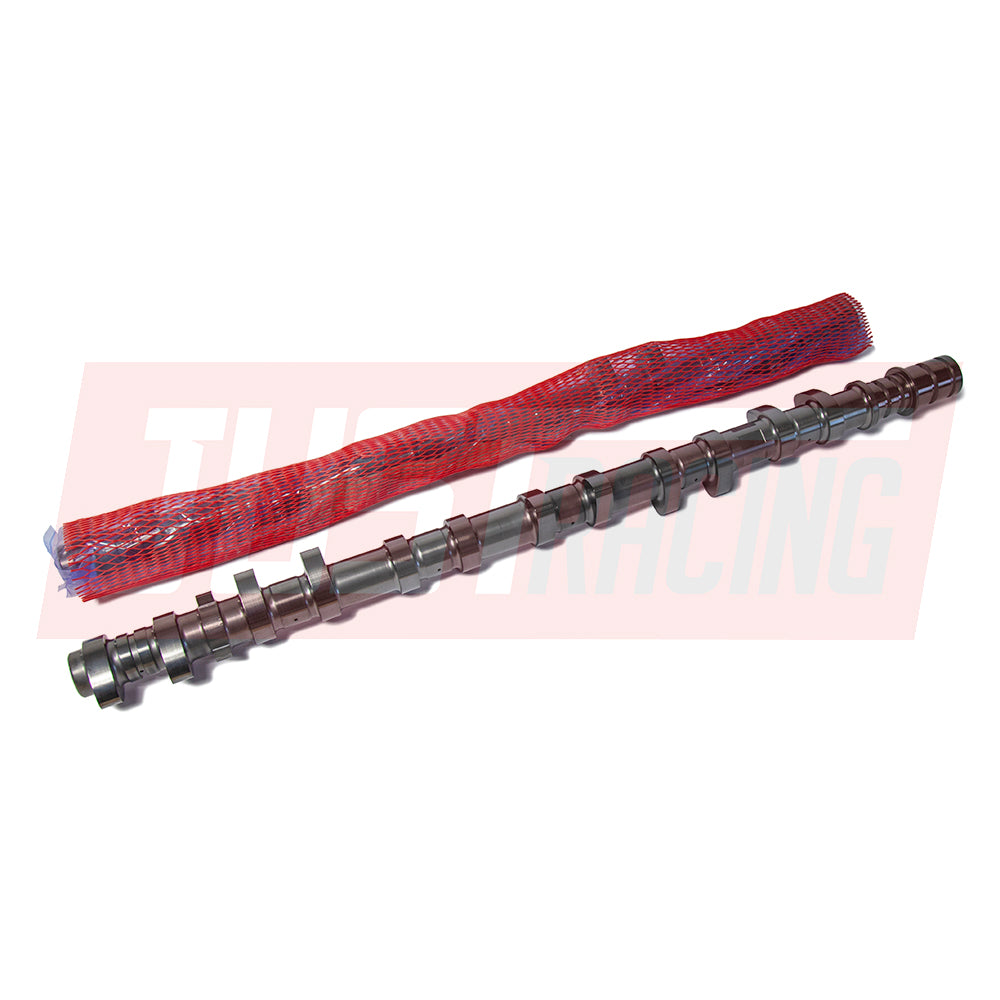

GSC Power-Division Billet R2 Camshafts Toyota 2JZ GSC7030R2

The R2 cams are designed for those running large single turbos, larger than 76mm. These cams will not have bottom end losses over our S2 cams; nothing but gains will be seen and will promote great peak power gains. Designed for a rev range of 4500-9000 RPMs. These cams require an upgraded valve spring set such as our Conical Spring kits (GSC5064 or GSC5066) along with shimless buckets/tappets and head clearance for lift. The R2 camshafts are meant for 1500-1800 wheel horsepower. It is necessary to clearance the cylinder head casting to allow for the R2 profile to rotate in the VVTi cylinder head. Please maintain .02" / .5mm min clearance from the cylinder head casting.

• Brand: GSC Power-Division
• Manufacturer Part Number: GSC7030R2


• Adv Duration: 278 Degree
• Duration: @ 0.040" : 242 Degree
• Peak Lift: 11.30mm

• Center Line: 110

• Adv Duration: 278 Degree
• Duration: @ 0.040" : 240 Degree
• Peak Lift: 11.30mm

• Center Line: 118
