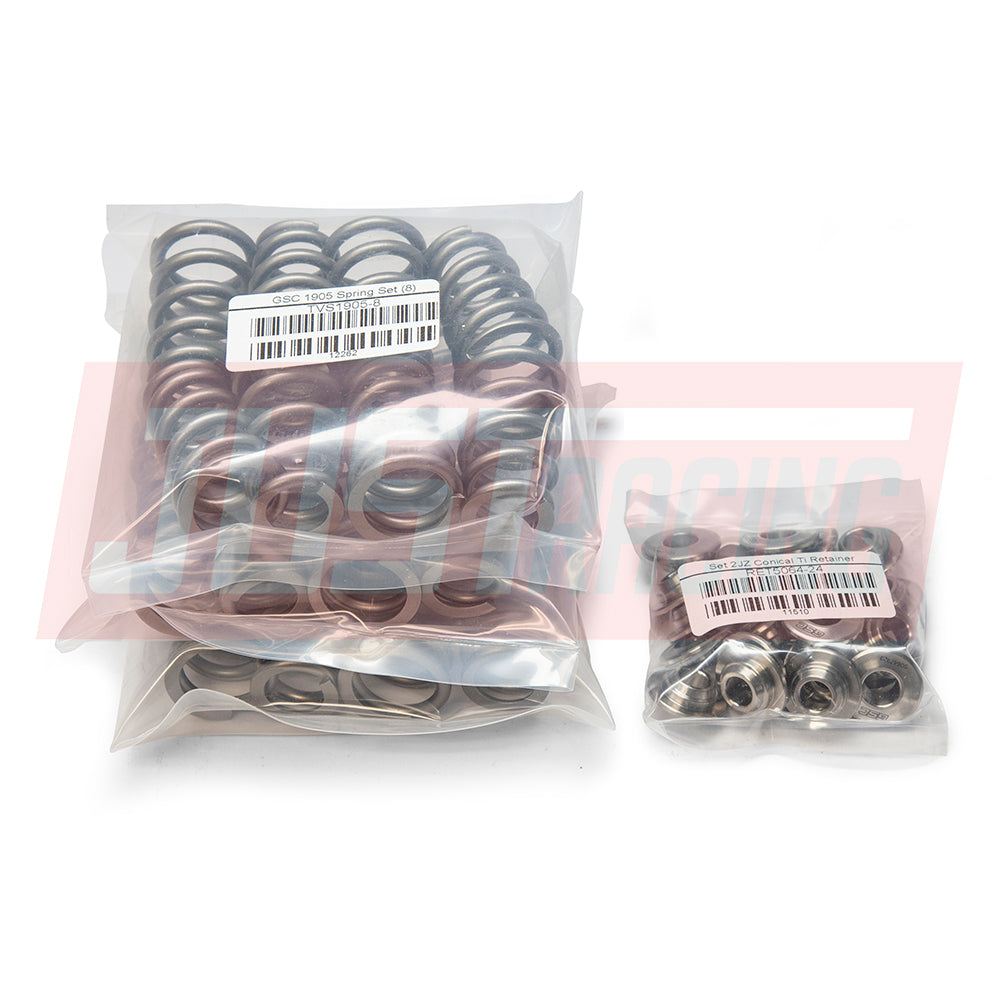

GSC Power-Division Conical HP Valve Springs & Ti Retainer Kit Toyota 2JZ GSC5066

GSC Power-Division Conical HP Valve Springs & Ti Retainer Kit Toyota 2JZ GSC5066

Regular price $783.75 USD
Regular price Sale price $783.75 USD
Sale Sold out
Shipping calculated at checkout.

True conical valve springs are not a new concept and are industry proven to provide several key advantages over traditional spring designs. A major advantage of conical springs vs. traditional cylindrical or beehive springs is the damping and removal of valvetrain harmonics. Of the three designs, conical springs are the front runners in valvetrain harmonic stability. Utilizing a varying coil diameter as well as coil spacing, a conical spring acts as a natural harmonic damper in the transfer of valvetrain shock. This translates to less stress, less wear, and a longer life of the included components. This level of protection is needed in todays engines being pushed to their physical and mechanical limits by aftermarket modifications. Every GSC conical spring offers a super finished surface treatment to go along with the patented, multi-step heat treatment process. The finished product is an extremely reliable, high-performance spring allowing the users to push higher RPMs, use more aggressive cam profiles, and turn up higher boost pressures. Set of 24.

  • Brand: GSC Power-Division
  • Manufacturer Part Number: GSC5066
  • Setup: High pressure Conical
  • Coil Bind: 0.818"
  • Install Height: 1.316"
  • Seat Pressure: 105lbs
  • Open Pressure: 11.35mm
  • Lift: 253lbs @ 0.869"
  • Maximum Valve Lift: 0.447"
