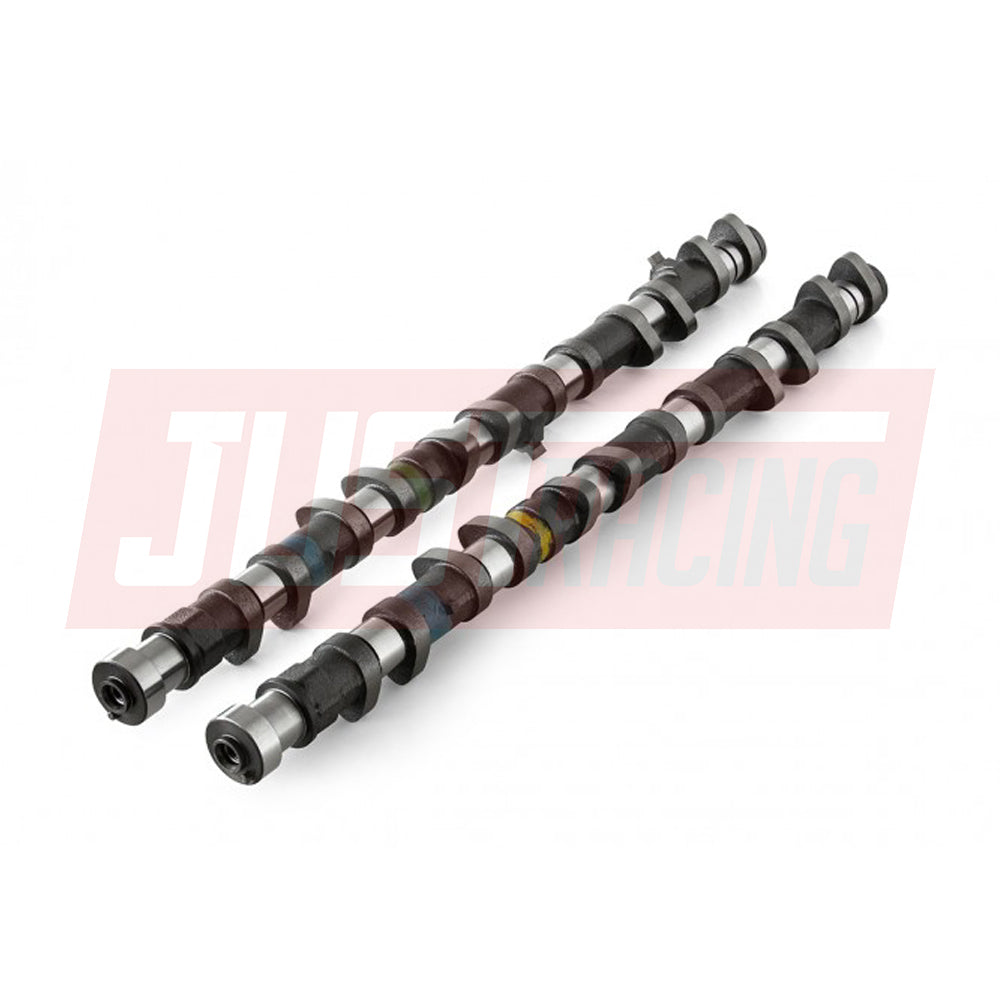

Kelford Cams 272/278 Degree Race Camshafts Toyota 1JZ 229-D

Kelford Cams Toyota 1JZ - 272 / 278 Degree Racing Camshafts. These are Kelford's popular cam specifications for vast range of motorsport applications. Requires valve spring upgrade KVS109-1JZ.

• Brand: Kelford Cams
• Manufacturer Part Number: 229-D
• Valve Clearance:
  Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM
• Cam Lift:
  Intake: 10.20mm
  Exhaust: 10.20mm
• Rocker Ratio:
  Intake: 1.00
  Exhaust: 1.00
• Net Valve Lift:
  Intake: 9.95mm
  Exhaust: 9.95mm
• Advertise Duration @ 0.10mm:
  Intake: 272
  Exhaust: 278
• Duration @ 1.00mm Valve Lift:
  Intake: 236
  Exhaust: 240
• Timing @ 1.00mm Valve lift:
  INVO: 4 ATDC
  EVO: 60 BBDC
  IVC: 34 ABDC
  EVC: 0 TDC
• Suggested Centre Lines:
  Intake: VARI
  Exhaust: 120
• Valve Lift @ TDC
  Intake: 0.68mm
  Exhaust: 0.94
