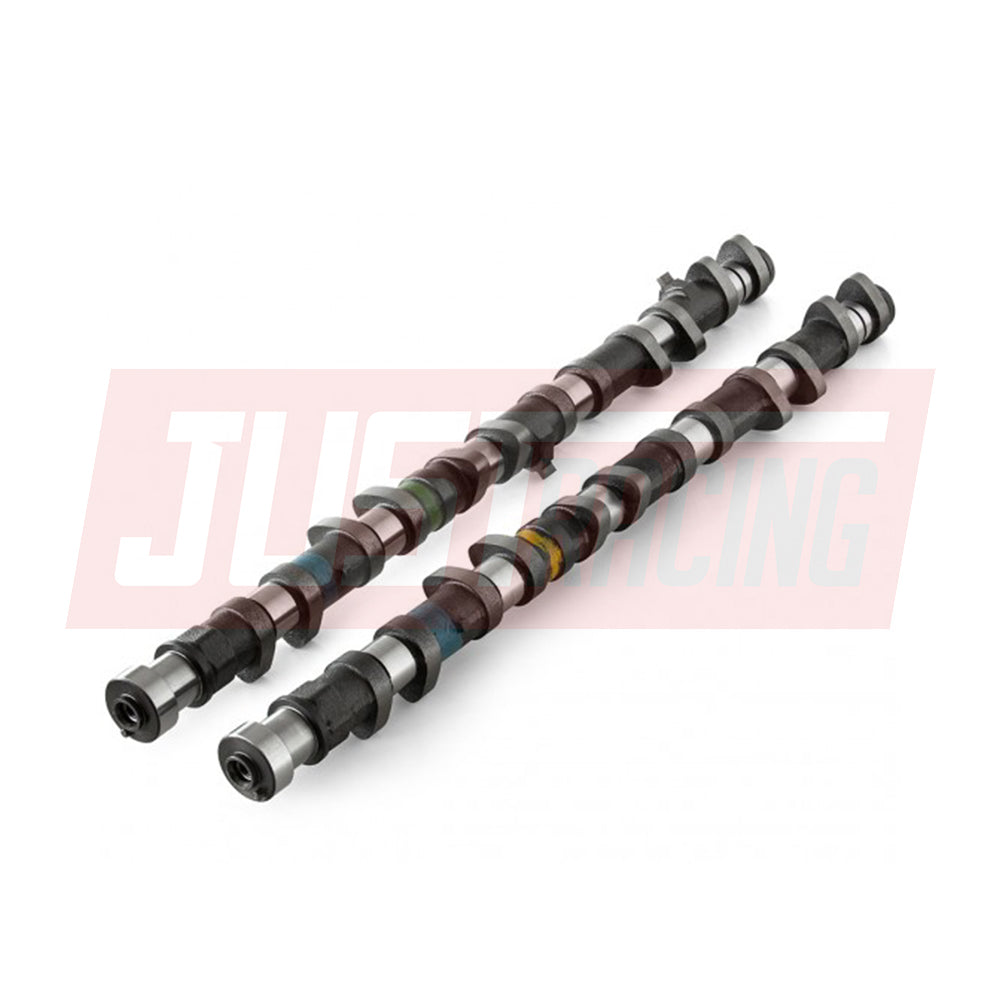

Kelford Cams 282/286 Degree Race Camshafts Toyota 2JZ T202-F

Kelford Cams Toyota 2JZ - 282/286 Degree racing cams to suit engines running an E85 blend. These cams require shimless bucket or shim-under-bucket conversion.

• Brand: Kelford Cams
• Manufacturer Part Number: T202-F
• Valve Clearance:
  Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM
• Cam Lift:
  Intake: 11.25mm
  Exhaust: 11.25mm
• Rocker Ratio:
  Intake: 1.00
  Exhaust: 1.00
• Net Valve Lift:
  Intake: 11.00mm
  Exhaust: 11.00mm
• Advertise Duration @ 0.10mm:
  Intake: 282
  Exhaust: 286
• Duration @ 1.00mm Valve Lift:
  Intake: 244
  Exhaust: 248
• Timing @ 1.00mm Valve lift:
  IVO: 10 BTDC
  EVO: 64 BBDC
  IVC: 54 ABDC
  EVC: 6 ATDC
• Suggested Centre Lines:
  Intake: 112
  Exhaust: 120
• Valve Lift @ TDC
  Intake: 2.36mm
  Exhaust: 1.40
