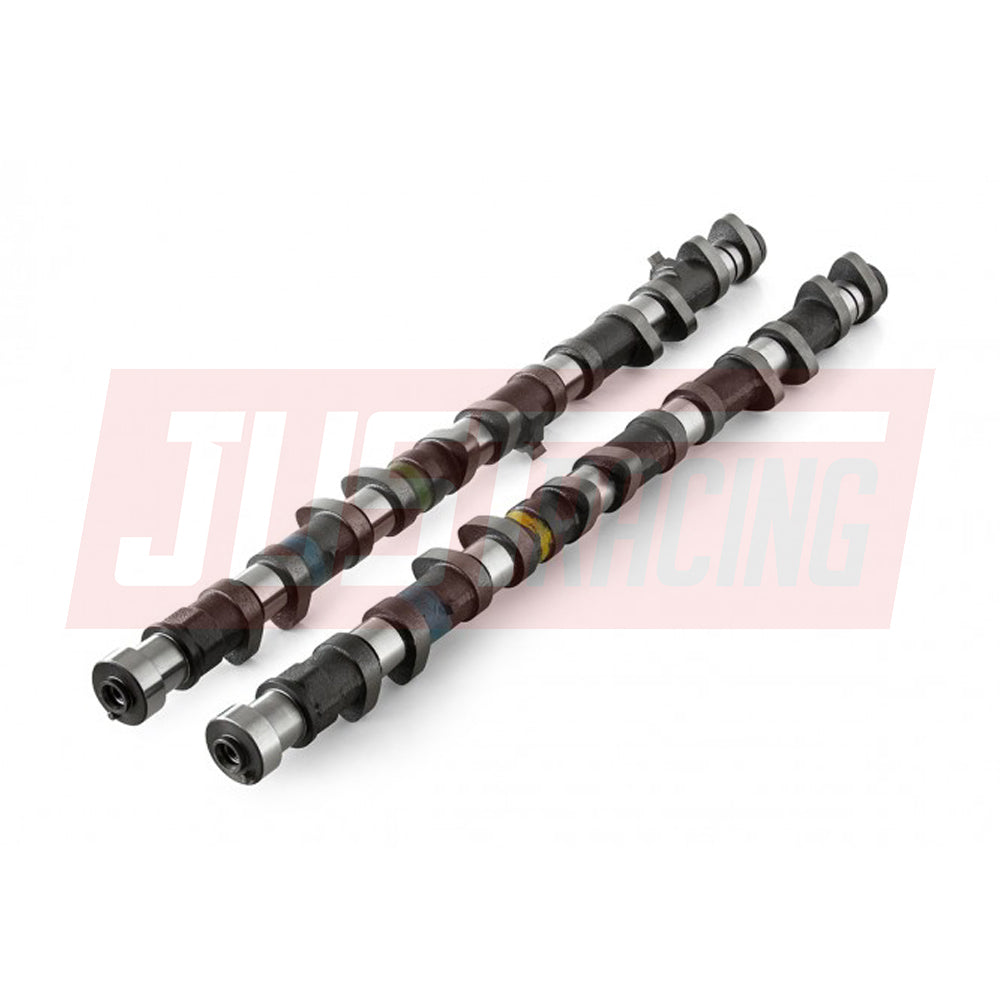

Kelford Cams Street & Strip Performance Camshafts Toyota 1JZ VVTi V229-C

Kelford Cams Toyota 1JZ - VVTi Street / Strip Performance Camshafts V229-C. 264 / 272 Degree Street, Strip or Track day cams for good response and midrange power. Suits up to 30 lb boost and 8000 RPM with our recommended valve spring. Requires valve spring upgrade, KVS109-1JZ.

• Brand: Kelford Cams
• Manufacturer Part Number: V229-C
• Valve Clearance:
  Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM
• Cam Lift:
  Intake: 9.90mm
  Exhaust: 9.90mm
• Rocker Ratio:
  Intake: 1.00
  Exhaust: 1.00
• Net Valve Lift:
  Intake: 9.65mm
  Exhaust: 9.65mm
• Advertise Duration @ 0.10mm:
  Intake: 264
  Exhaust: 272
• Duration @ 1.00mm Valve Lift:
  Intake: 228
  Exhaust: 232
• Timing @ 1.00mm Valve lift:
  INVO: 4 BTDC
  EVO: 52 BBDC
  IVC: 34 ABDC
  EVC: 0 TDC
• Suggested Centre Lines:
  Intake: VARI
  Exhaust: 116
• Valve Lift @ TDC
  Intake: 0.68mm
  Exhaust: 0.94
