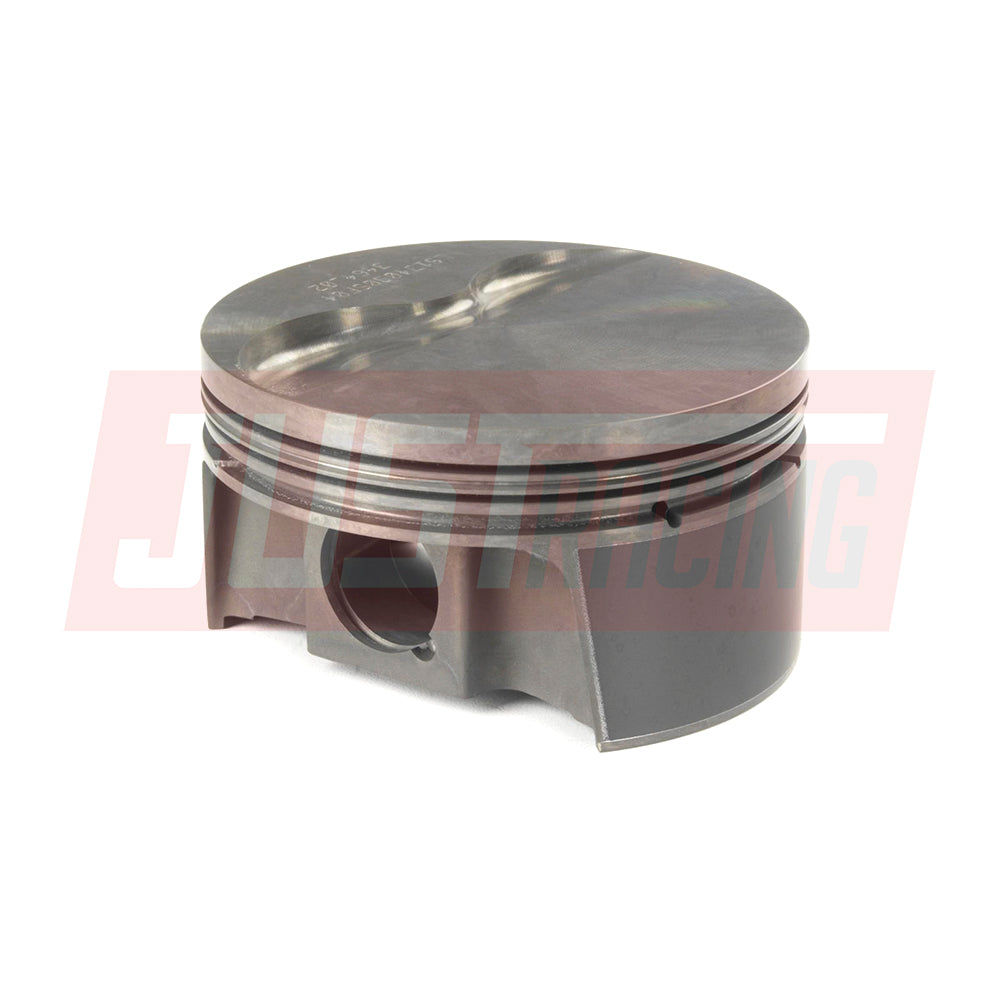

Mahle PowerPak 4.075" Flat Top Piston and Ring Kit Chevy LS3 L92 930223275

Mahle PowerPak piston and ring kits include forged pistons, low-drag rings, steel pins, and wire locks—all in one race-proven package. The pistons are hand-deburred and then coated with dry phosphate to protect against ring micro-welding and pin galling during initial startup. For additional performance, Mahle added its proprietary Grafal anti-friction coating to the piston skirts. These replacement packages are available in a wide variety of size options for fitment with specific engines and pistons.

• Brand: Mahle
• Manufacturer Part Number: 930223275
• Piston Rings Included: Yes
• Bore: 4.075in / 103.505mm
• Stroke: 4.000in
• Rod Length: 6.125in
• Piston Style: Flat Top, with two valve reliefs
• Piston Material: Forged Aluminum
• Compression Height: 1.105in
• Piston Head Volume: +4.00cc
• Wrist Pin Style: Press-Fit or Floating
• Wrist Pin Retainers Included: Yes
• Wrist Pin Included: Yes
• Pin Diameter: 0.927in
• Piston Ring Thickness: 1.00mm x 1.00mm x 2.00mm
• File Fit: Yes
• Gapless: No
• Top Ring Thickness: 1.0mm
• Top Ring Material: Ductile Iron
• Top Ring Facing Material: Plasma-moly
• Second Ring Thickness: 1.0mm
• Second Ring Material: Cast Iron
• Second Ring Facing Material: Cast Iron
• Oil Ring Thickness: 2.0mm
• Oil Ring Material: Stainless Steel
• Oil Ring Tension: Standard
• Quantity: Sold as a set of 8
