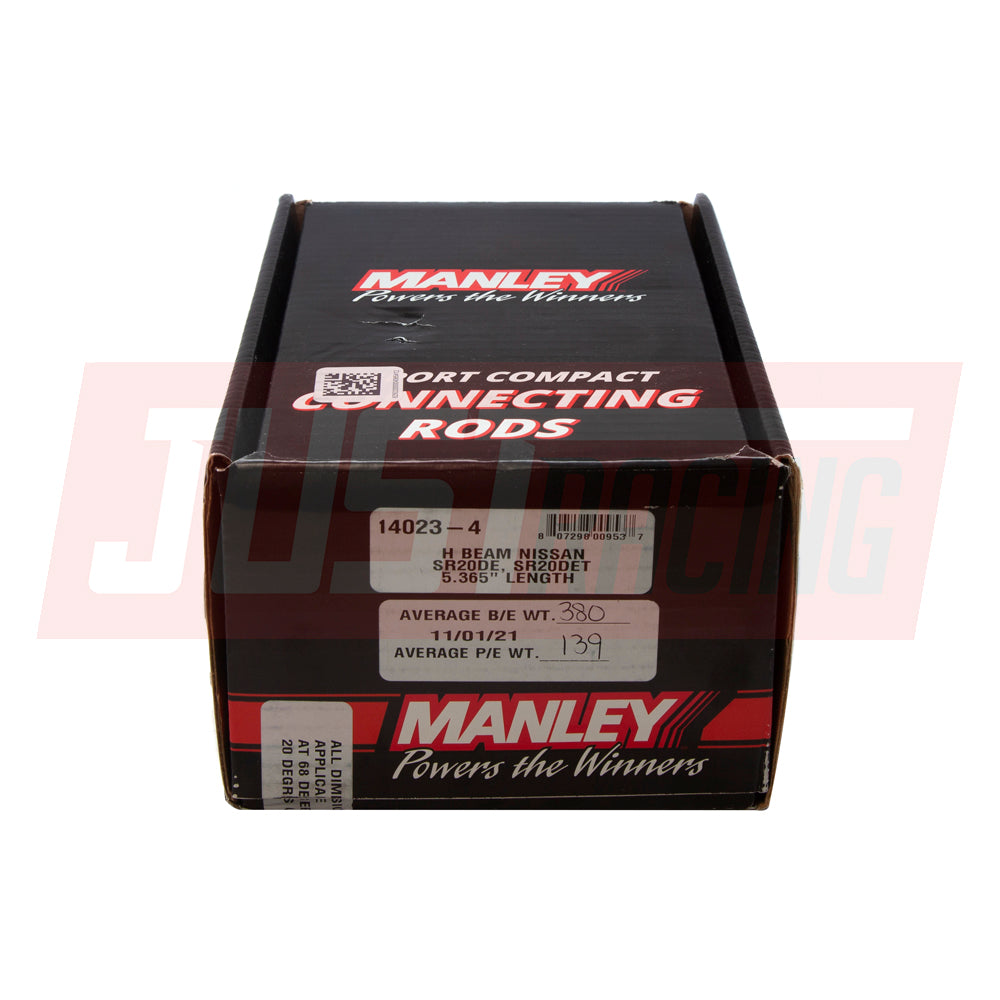

Manley H-Beam Connecting Rods Nissan SR20 14023-4

Manley H-Beam Connecting Rods Nissan SR20 14023-4

Regular price $518.00 USD
Regular price $575.56 USD Sale price $518.00 USD
Sale Sold out
Shipping calculated at checkout.

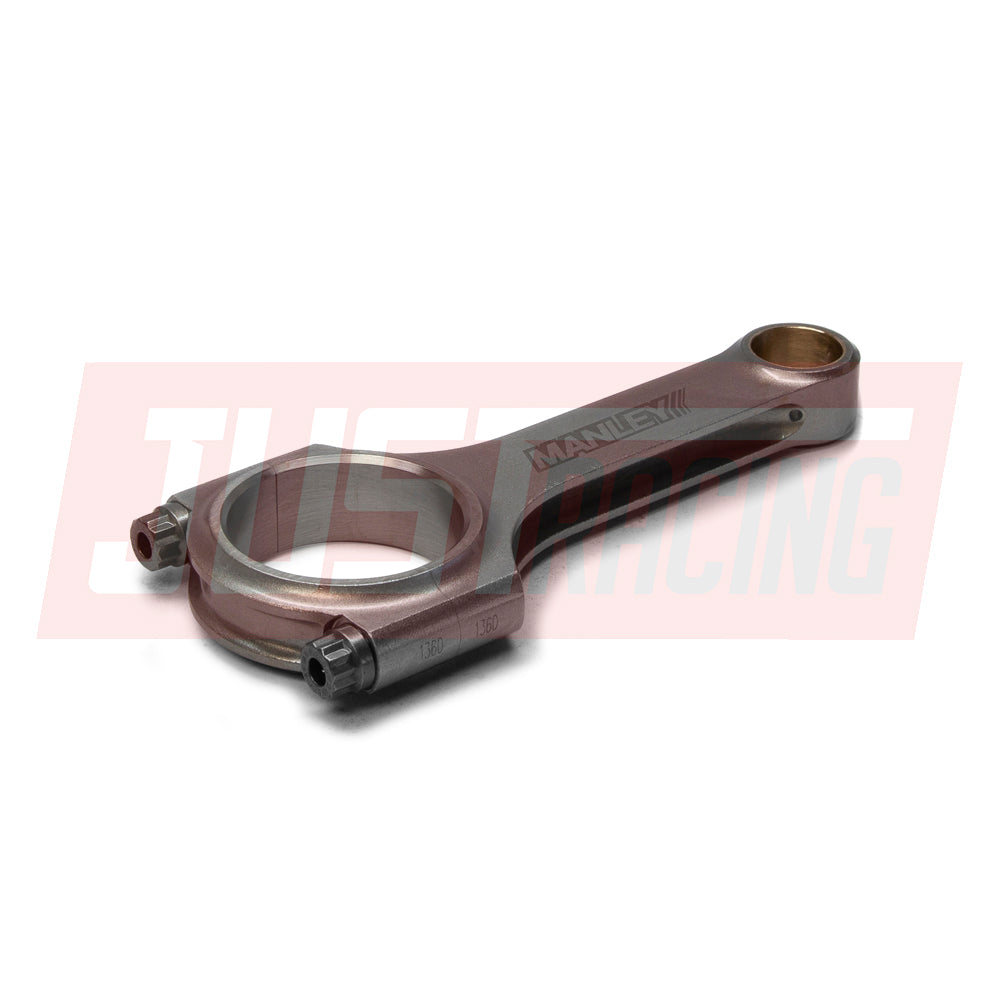

Manley steel H-beam connecting rods are made from forged 4340 steel alloy. They're packed full of performance features, such as a compact uniform-grain structure for ultimate strength, full machining, stress relieving, and magnafluxing. The wrist pin and big end bores are honed to a +/-.0002 in. tolerance, and the wrist pins get a bronze alloy bushing. These units include cap screw ARP 8740 alloy rod bolts, and each rod set is weight-matched to within 2 grams. Available individually or in a set, order the model recommended for your vehicle year/make and engine application.

  • Brand: Manley
  • Manufacturer Part Number: 14023-4
  • Connecting Rod Length: 5.365"
  • Connecting Rod Beam Style: H-Beam
  • Connecting Rod Material: Forged 4340 Steel
  • Connecting Rod Color: Shot-Peened
  • Wrist Pin Style: Floating
  • Big End Bore Diameter: 2.008"
  • Big End Width: 0.900"
  • Pin End Bore Diameter: 0.867"
  • Clearanced for Stroker: No
  • Cap Retention Style: Cap Screw
  • Connecting Rod Bolt Brand: ARP
  • Connecting Rod Bolt Diameter: 3/8"
  • Connecting Rod Bolt Material: ARP 2000 Alloy
  • Fastener Tensile Strength: 200,000 PSI
  • Connecting Rod Bolt Head Style: 12 Point
  • Connecting Rod Weight: 512g
  • Magnafluxed: Yes
