Manley Platinum Series Turbo Tuff Pistons 87mm 9.0:1 Toyota 1JZ 609310CE-6
Manley Platinum Series Turbo Tuff Pistons 87mm 9.0:1 Toyota 1JZ 609310CE-6
Regular price
$1,447.09 USD
Regular price
$1,572.93 USD
Sale price
$1,447.09 USD
Unit price
/
per

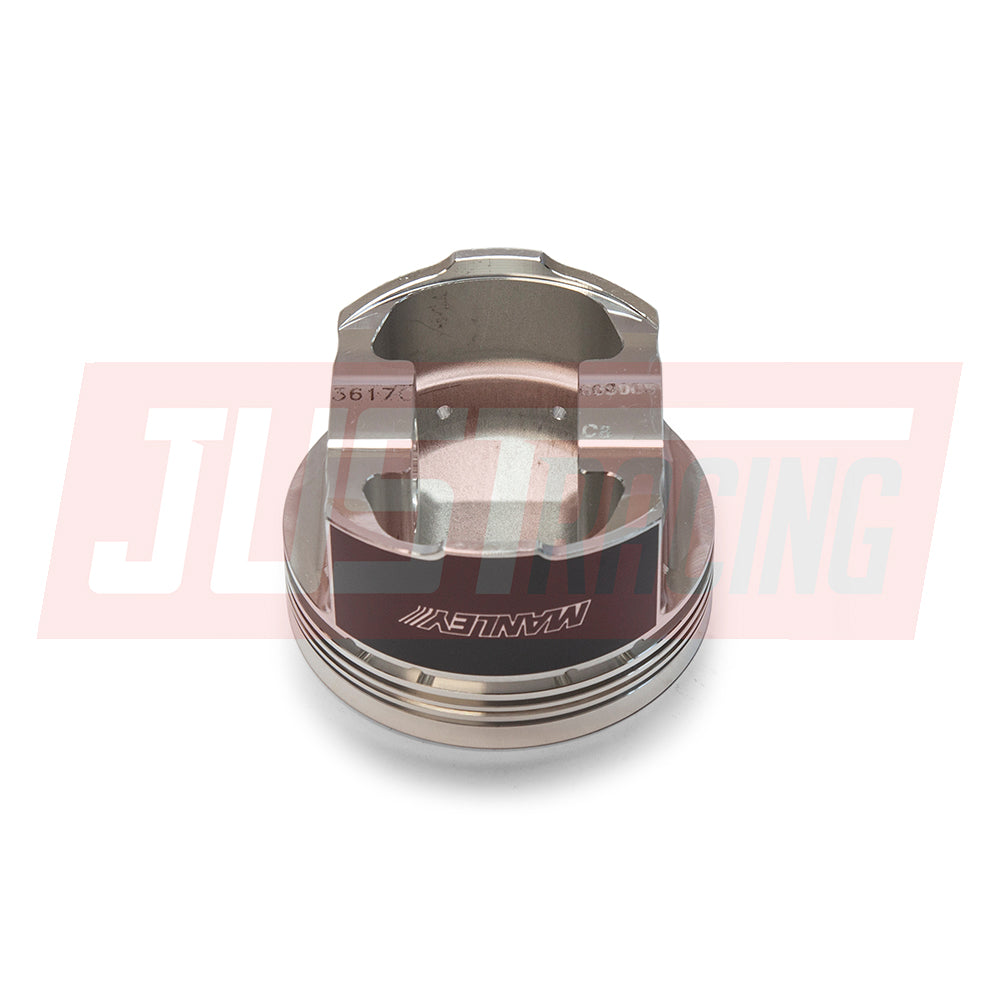

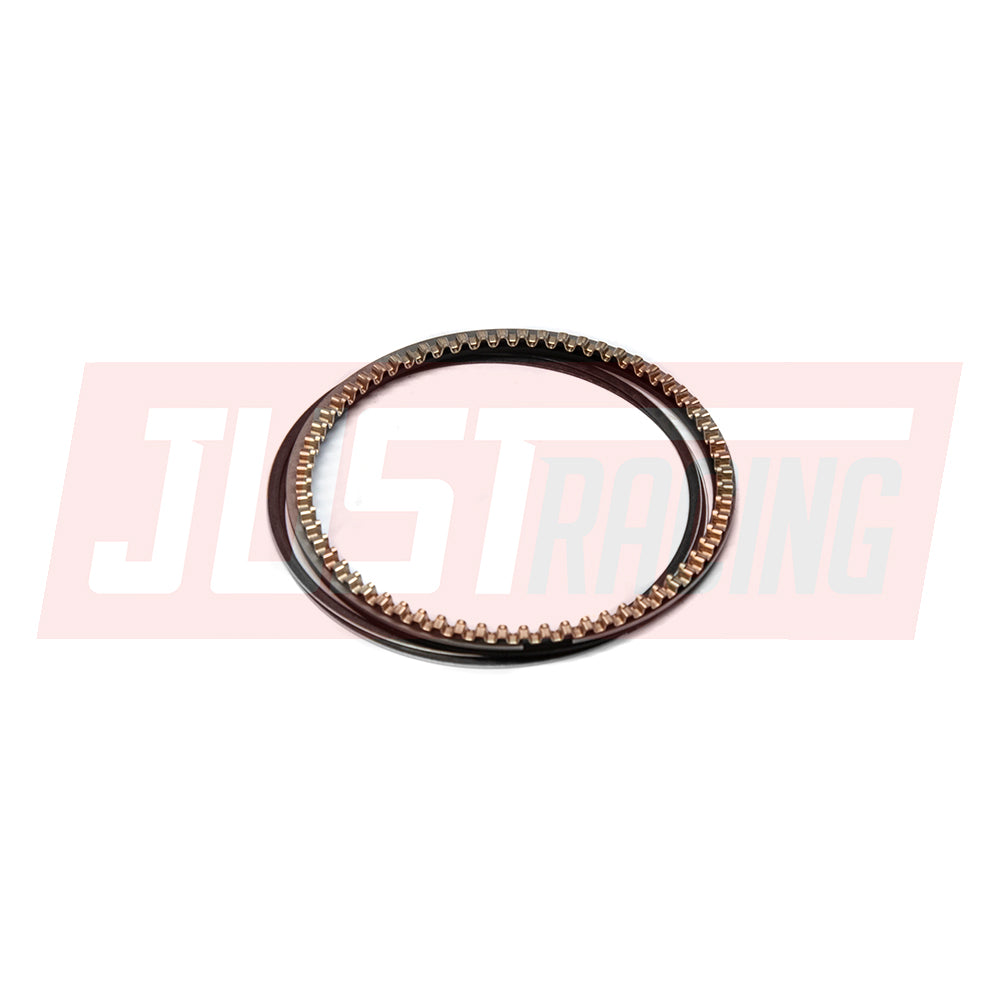

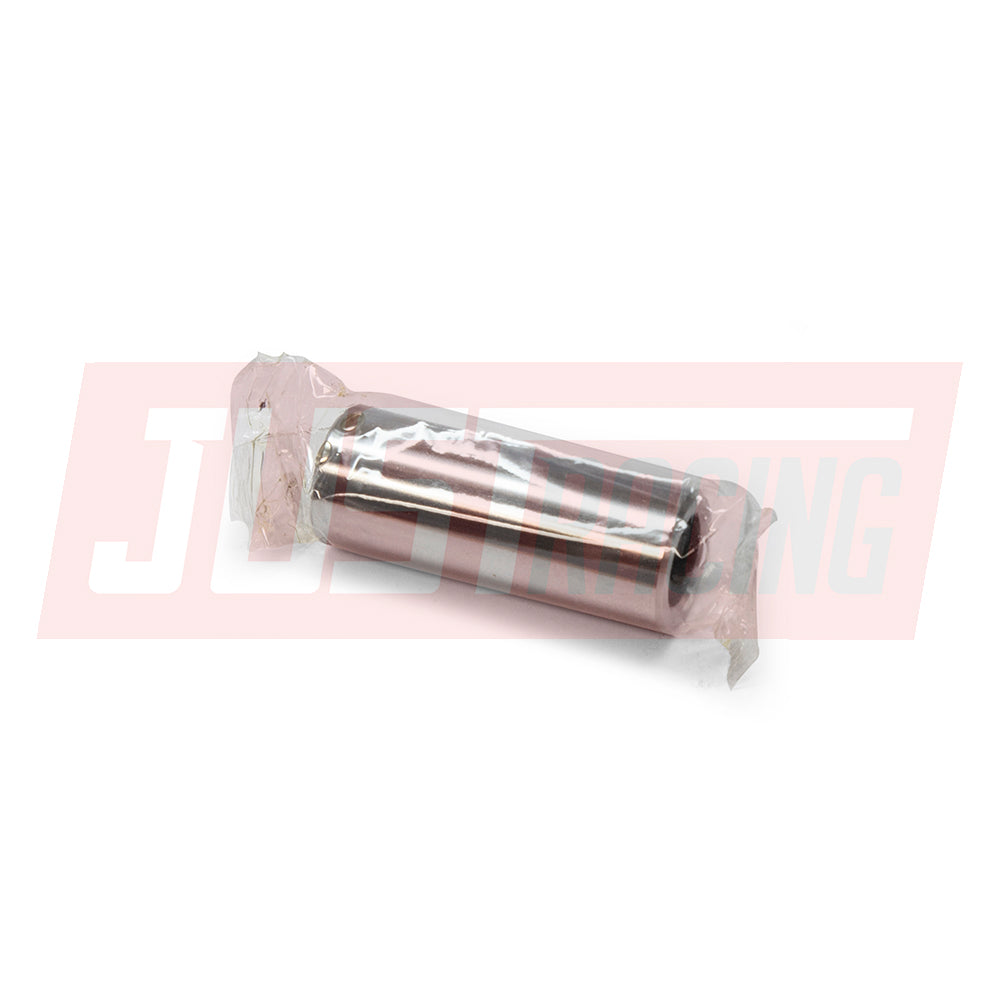

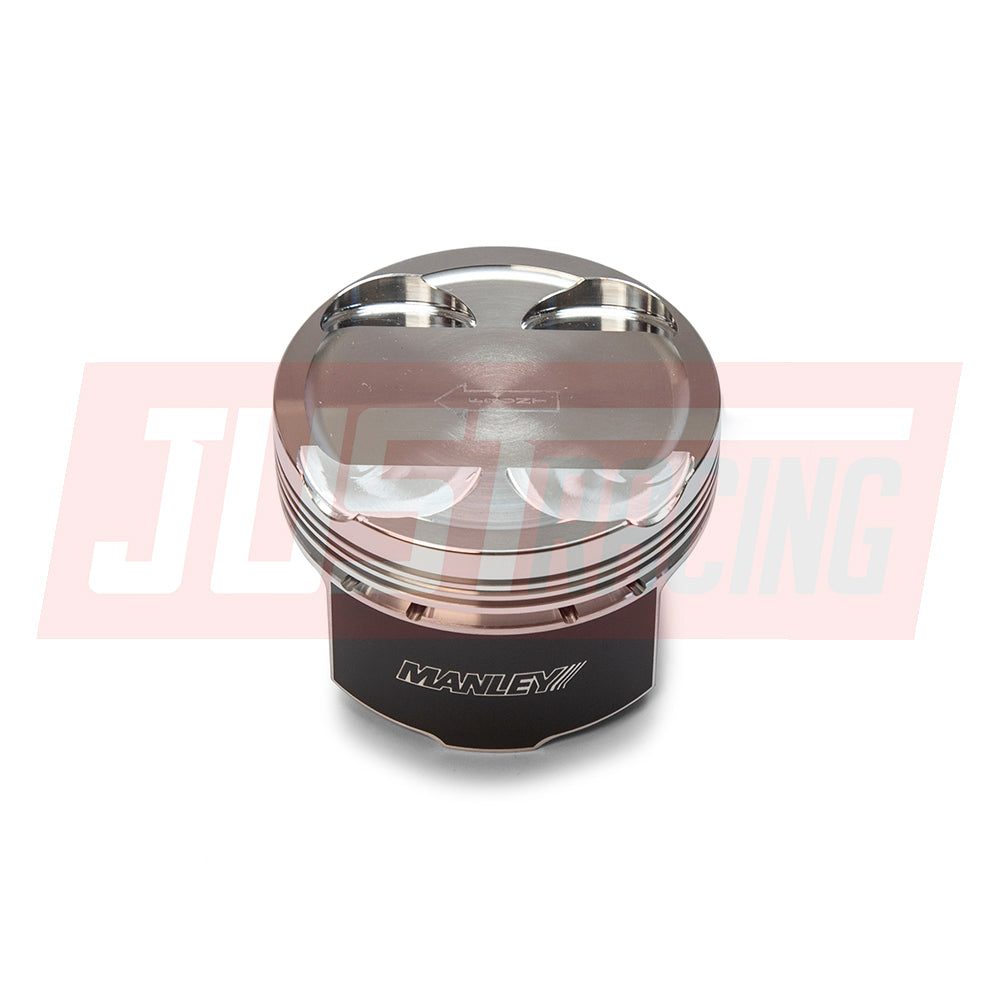

The Turbo Tuff Pistons are made of 2618 high strength material with a 2.250 x .250" wall measurement. Included is a 9310 alloy pin. Each piston has a moly coated skirt, pressure balance groove, and vertical gas ports designed for high horsepower race engines. They include premium steel top rings with napier seconds and round wire locks and are recommended to have a .0035" piston clearance. The Turbo Tuff pistons will accommodate +1mm valve sizes. Set of 6.
- Brand: Manley
- Manufacturer Part Number: 609310CE-6
- Bore Size: 87mm
- Oversize: 1mm
- Compression Ratio: 9.0:1
- Stroke: 86
- Comp Distance: 1.328"
- Dome Volume: -1cc
- Cylinder Head: 45cc
- Piston Type: Dish
- Weight: 386g
