Manton

Manton Press Fit Bronze Bushing Trunnion Kit Chevy LS 196-LS-100-KIT

Manton Press Fit Bronze Bushing Trunnion Kit Chevy LS 196-LS-100-KIT

Regular price $295.68 USD
Regular price Sale price $295.68 USD
Sale Sold out
Shipping calculated at checkout.

The Manton Trunnion Kit for LS and Gen V LT engines features a non-stepped design for a continual diameter from end to end which achieves a greater loading area than other trunnion kits. The length of the trunnion has been extended and a flange added to the bushing for accommodation of side loading due to the canted valve angle of both LS7 and Gen V LT engines making this kit the ideal addition to your high performance, high-RPM build. Additionally, a thrust washer has been added between the side wall of the bushing and the c-clip which acts as an intermediary bearing surface preventing the bushing from contacting the harder material of the c-clip. The trunnion is manufactured from 8620 hardened material and has been shown to be 10x the strength of the rocker arm while producing ideal bearing surface wear resistance.

  • Brand: Manton
  • Manufacturer Part Number: 196-LS-100-KIT

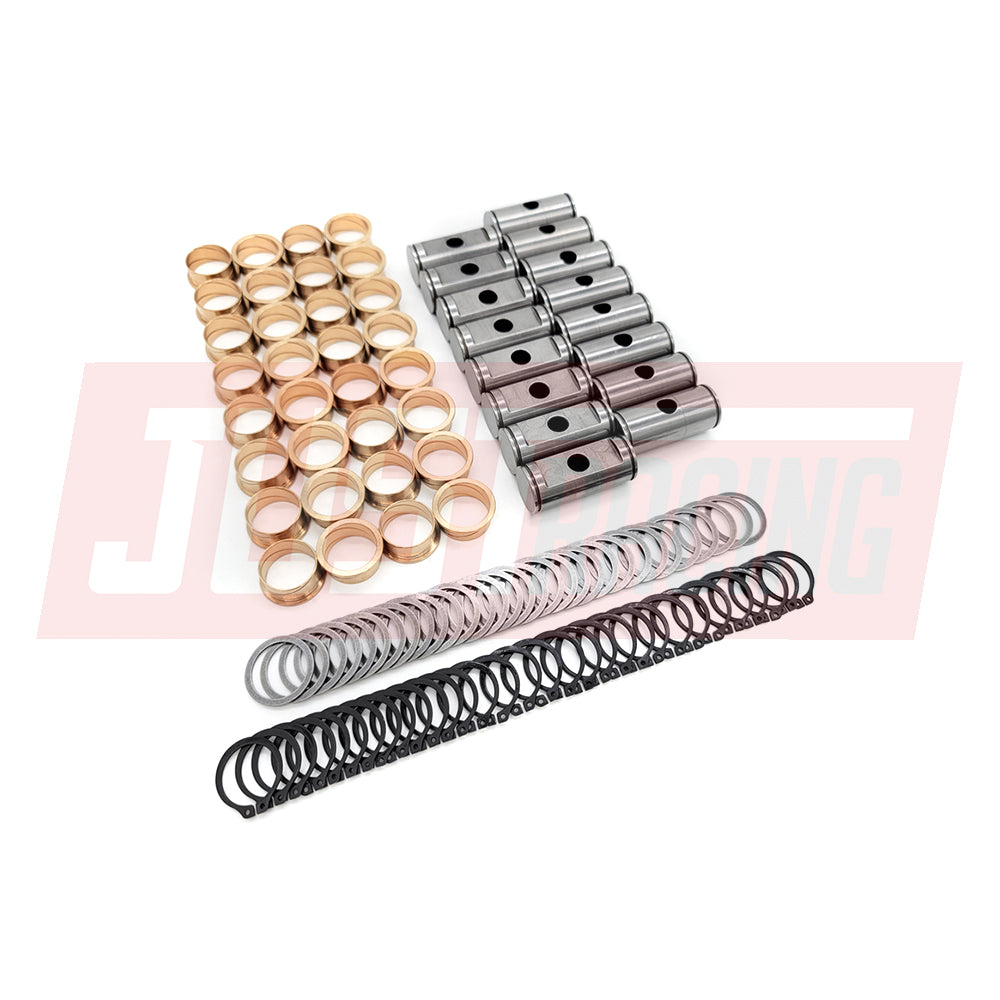

  • Notes: Includes - 16 Trunnion Shafts, 32 Bronze Trunnion Bushings, 32 Trunnion Washers, & 32 Trunnion C-Clips. Fits Factory LS Rocker Arms.
